ULDC Pond 8 & Pump Station
Saratoga Springs · Utah County
- Concrete-Lined Irrigation Pond
- 17 Acre-Feet
- Location
- Saratoga Springs
- County
- Utah County
- Year
- 2019
- Owner / Engineer
- City of Saratoga Springs / Hansen, Allen & Luce
Project Overview

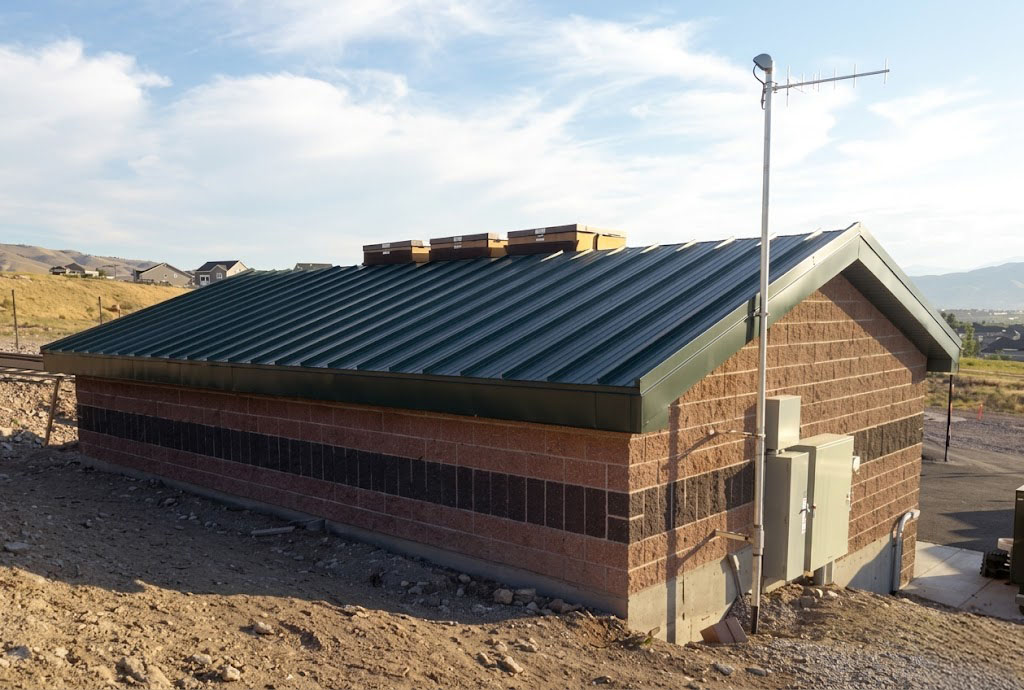

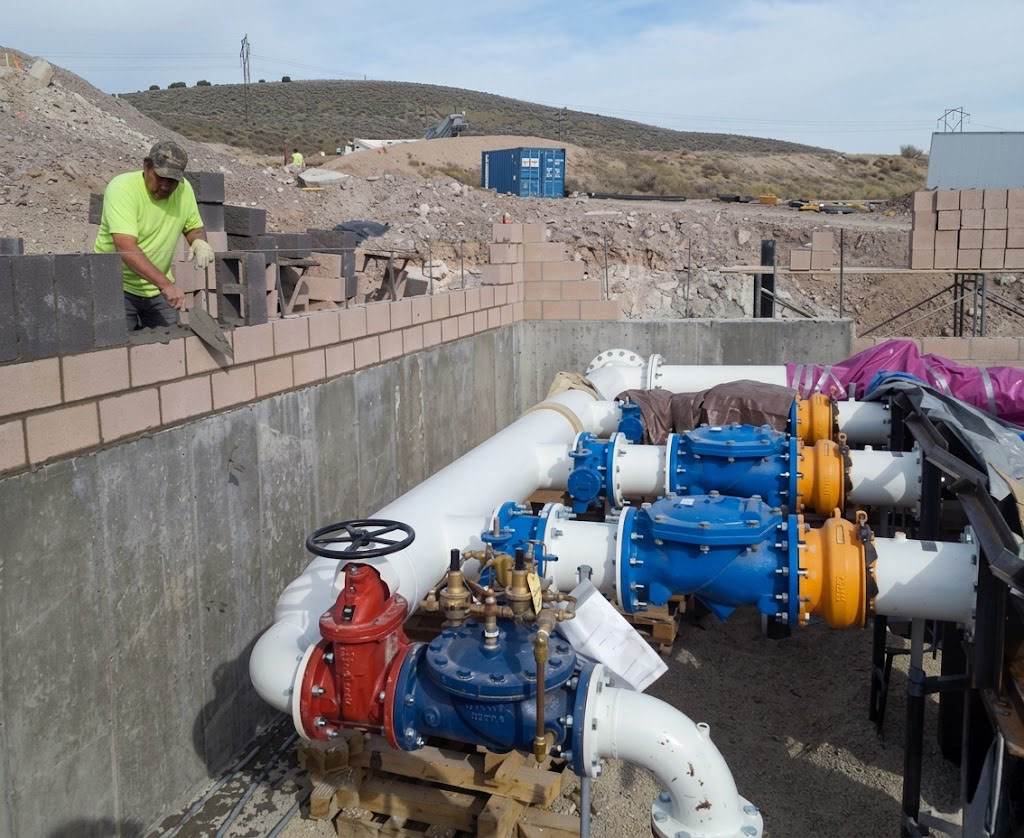

VanCon built a manmade, concrete-lined 17 AC-FT irrigation pond which included an inlet and spillway structures. VanCon also built a masonry pressurized irrigation pump station building to house three new 100 HP vertical turbine pumps. To manage the water, VanCon installed 2,350 linear feet of 30-inch ductile iron pipe, 1,567 linear feet of 16-inch PVC transmission pipe, and 2,390 linear feet of 24-inch RCP storm drain pipe.
Project Highlights
- 17 AC-FT concrete-lined irrigation pond
- Inlet and spillway structures
- Masonry pressurized irrigation pump station building
- Three 100 HP vertical turbine pumps
- 2,350 feet of 30-inch ductile iron pipe
- 1,567 feet of 16-inch PVC transmission pipe
- 2,390 feet of 24-inch RCP storm drain pipe
