JVWCD 11800 South Pipeline
Salt Lake County · Salt Lake
- Welded Steel Pipe Installed
- 22,000 Linear Feet
- Location
- Salt Lake County
- County
- Salt Lake
- Year
- 2017
- Owner / Engineer
- Jordan Valley Water Conservancy District / Jacobs Engineering Group
Project Overview

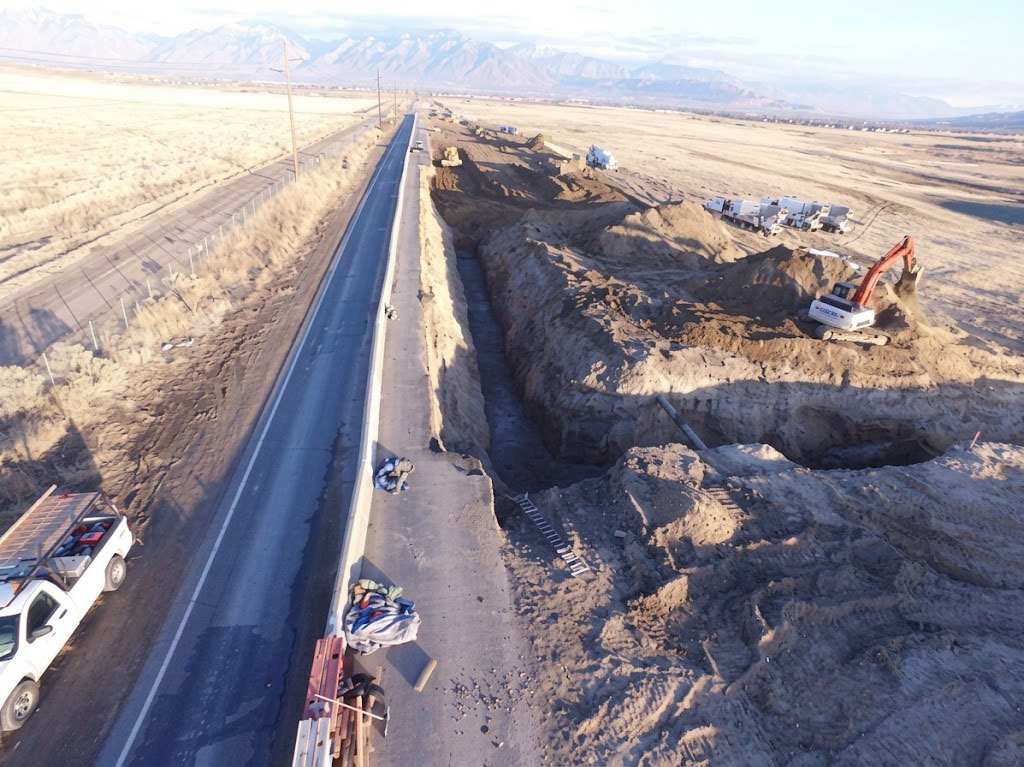

VanCon installed 11,000 linear feet of 48-inch culinary welded steel pipe and 11,000 linear feet of 36-inch welded steel pipe along a large volume highway with high speed limits. This project included utility relocation, complex traffic diversion and the use of K-rail. The project also required the construction of seven air/vac or manway access vaults, two city turnout vaults, one PRV vault to tie two separate pressure zones together, painting of vaults, and construction of one interconnection vault with tie-in to existing lines. Work was completed in contaminated soils locations under Hazwopper regulations. Work consisted of multiple utility crossings, road crossings and asphalt replacement. Conditions included silt, sand and rock. This project required public relations management on an urban highway.
Project Highlights
- 11,000 feet of 48-inch culinary welded steel pipe installed
- 11,000 feet of 36-inch welded steel pipe installed
- Seven air/vac or manway access vaults constructed
- PRV vault tying two separate pressure zones
- Two city turnout vaults and one interconnection vault
- Hazwopper-regulated contaminated soils work
- Complex traffic diversion with K-rail on urban highway
