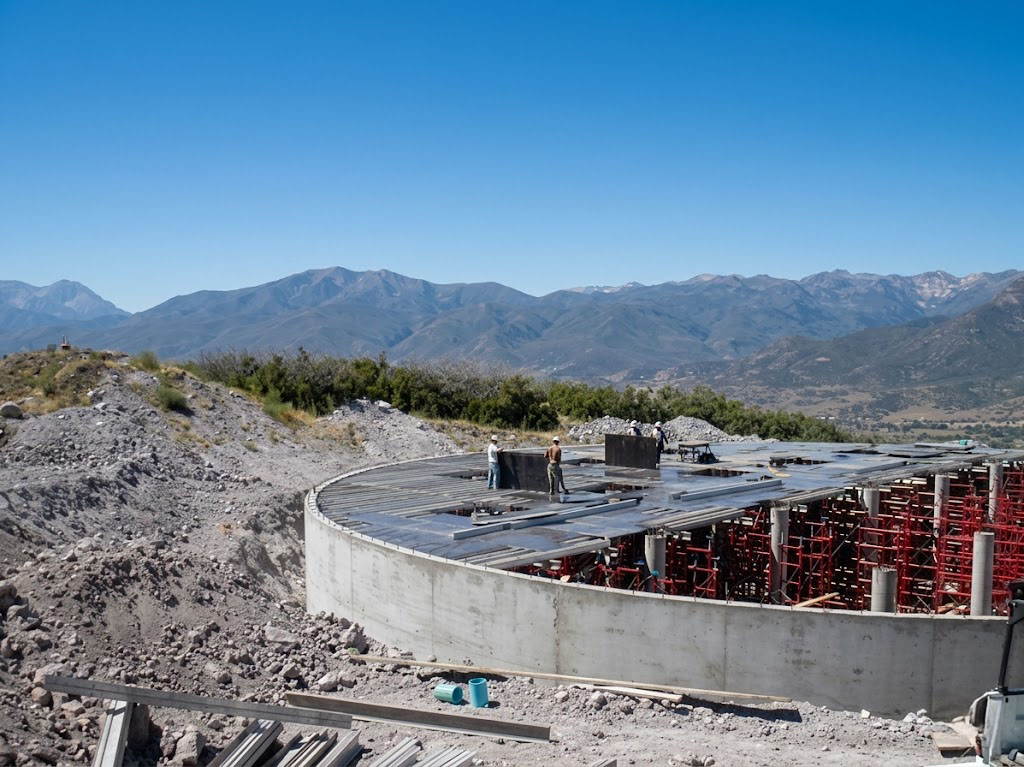

Red Ledges 1.4 Million Gallons Concrete Water Tank
Heber City · Wasatch County
- Mountaintop Concrete Water Tank
- 1.4 Million Gallons
- Location
- Heber City
- County
- Wasatch County
- Year
- 2008
- Owner / Engineer
- North Village Special Service District / Jackson Engineering
Project Overview
VanCon won the bid for a 1.4 MG concrete water tank on a mountaintop for North Village Special Service District. The area had to be drilled, blasted, and excavated, resulting in 13,000 cubic yards of rock and soil removal.
Project Highlights
- 1.4 MG concrete water tank on mountaintop
- Rock drilling and blasting required
- 13,000 CY of rock and soil removal
- Challenging high-elevation site access and logistics
