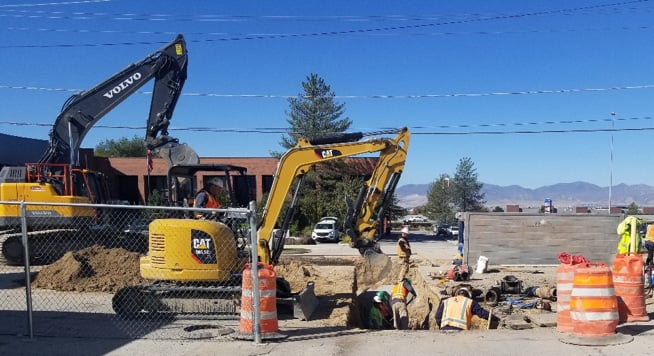

Sandy Harrison Storm Drain & Waterline
Sandy · Salt Lake County
- Storm Drain Pipe
- 3,045 Linear Feet
- Location
- Sandy
- County
- Salt Lake County
- Year
- 2019
- Owner / Engineer
- Sandy City / Jones & DeMille
Project Overview
VanCon installed 3,045 feet of storm drain pipe in a range of sizes, along with three new manholes, inlet boxes, curb, and flow fill around existing pipe. VanCon also installed 1,500 feet of 12-inch PVC and 230 feet of 8-inch PVC waterline.
Project Highlights
- 970 feet of 36-inch RCP
- 505 feet of 24x38-inch elliptical RCP
- 1,010 feet of 24-inch RCP
- 310 feet of 18-inch RCP and 250 feet of 15-inch RCP
- Three new manholes and inlet boxes
- Curb installation and flow fill around existing pipe
- 1,500 feet of 12-inch PVC and 230 feet of 8-inch PVC waterline
Related Projects

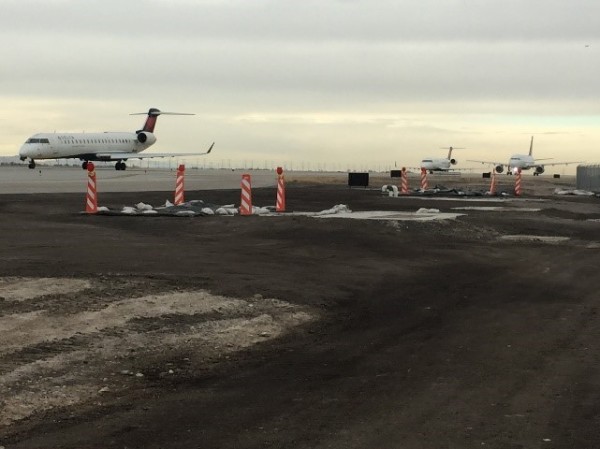

SLC Airport Glycol Diversion Valves
Salt Lake City International Airport · Salt Lake County · 2017
VanCon installed diversion vaults, catch basins, 12-inch HDPE pipe, and manholes to enable the airport to divert water safely into the storm drain systems during warm weather when glycol was not in use on the runway. The job included confined work space and coordinating with airport traffic control on an active runway.
High-Density Polyethylene Pipe
12-inch
View Project →

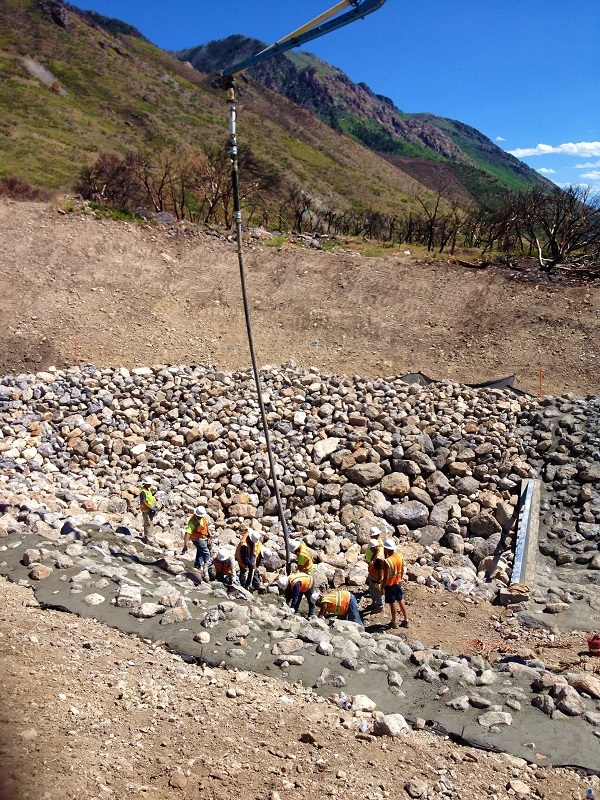

Alpine Storm Drain
Alpine · Utah County · 2013
After the fires in the Alpine Loop in 2012, VanCon was hired to work on flood mitigation. VanCon deepened a detention basin, lined it with riprap, fabric, and grout, and added a box to reduce the force of the floodwater. When an abnormally strong storm washed out the lining during construction, Alpine City, the Division of Natural Resources, Bowen Collins & Associates, and VanCon collaborated on more robust stormwater mitigation: installing an apron around the box exit, digging and lining a new channel below the detention basin with riprap, adding minor ponds to manage large influxes of floodwater, and upgrading the city storm drain. The storm drain upgrade included a new 108-inch storm drain, 111 feet of 18-inch RCP, 1,821 feet of 36-inch RCP, 825 feet of 48-inch RCP, and 400 feet of 60-inch RCP in Alpine Blvd and public and residential right-of-ways, boxes and manholes, curb inlet boxes, 18-inch RCP laterals, and concrete curb and gutter repair.
Storm Drain Upgrade
108-inch
View Project →

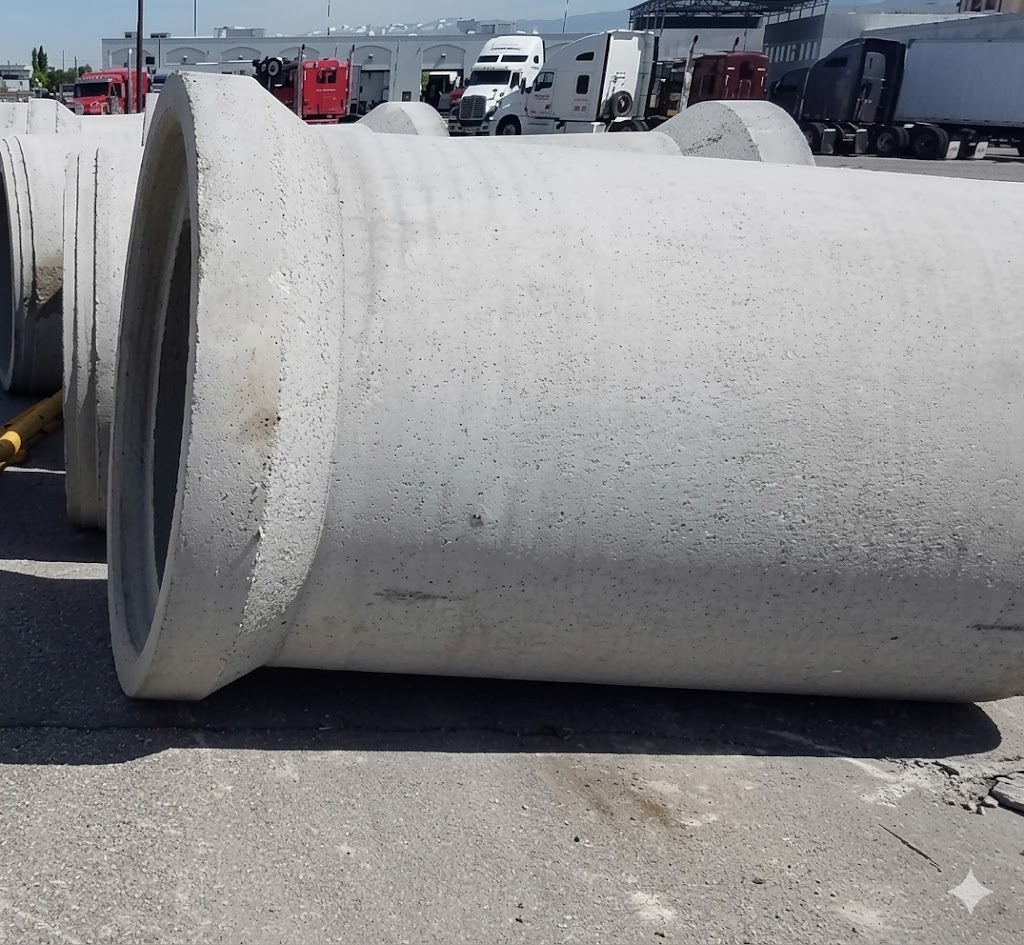

West Valley Pole Line Storm Drain
West Valley City · Salt Lake County · 2017
This project installed 5,000 linear feet of 15 to 48-inch RCP storm drain pipe (less than 200 linear feet of the pipeline was the smaller 15-inch) with a box culvert and other drainage structures. Work was completed in a busy commercial area requiring roadway reconstruction in public right-of-way, utility coordination, and exterior improvement restoration. Public relations were coordinated weekly through notices and schedule updates.
15- to 48-inch Reinforced Concrete Pipe Storm Drain
5,000 Linear Feet
View Project →
