CUWCD Santaquin Booster Station & Pipeline

Project Overview

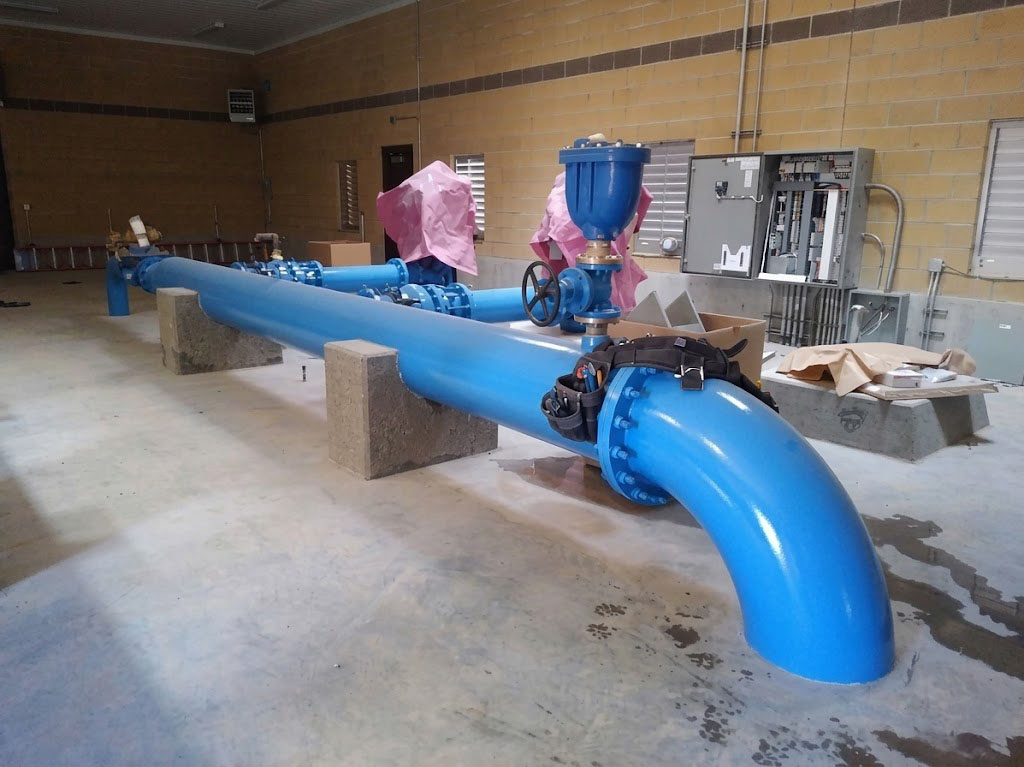

Originally designed for eight pumps, VanCon used the CM/GC process to create a plan Santaquin City accepted to reduce to four pumps while installing pump cans for four future pumps. Construction included a meter vault housing two 125 HP irrigation pumps and two 75 HP culinary pumps, cans for four future pumps, 1,000 feet of PVC culinary pipe, 300 feet of 48-inch reinforced concrete storm drain, a 16-inch manifold, a 10-inch culinary line, and a 48-inch RCP culvert for drainage. The pump station was connected with 1,100 feet of 18-inch PVC irrigation transmission pipeline, and the existing valve was automated for remote control from the pump station.

Project Highlights

• CM/GC value engineering reduced 8 pumps to 4, saving capital cost
• Pump cans installed for 4 future pumps
• Two 125 HP irrigation pumps and two 75 HP culinary pumps
• 1,000 feet of PVC culinary pipe
• 300 feet of 48-inch reinforced concrete storm drain
• 1,100 feet of 18-inch PVC irrigation transmission pipeline
• 48-inch RCP culvert for drainage
• Existing valve automated for remote pump station control
