Young Living Farm Potable Water Systems and Bores
Mona · Juab County
- Concrete Water Storage Tank
- 250,000 Gallons
- Location
- Mona
- County
- Juab County
- Year
- 2016
- Owner / Engineer
- Young Living Farms / Stantec
Project Overview

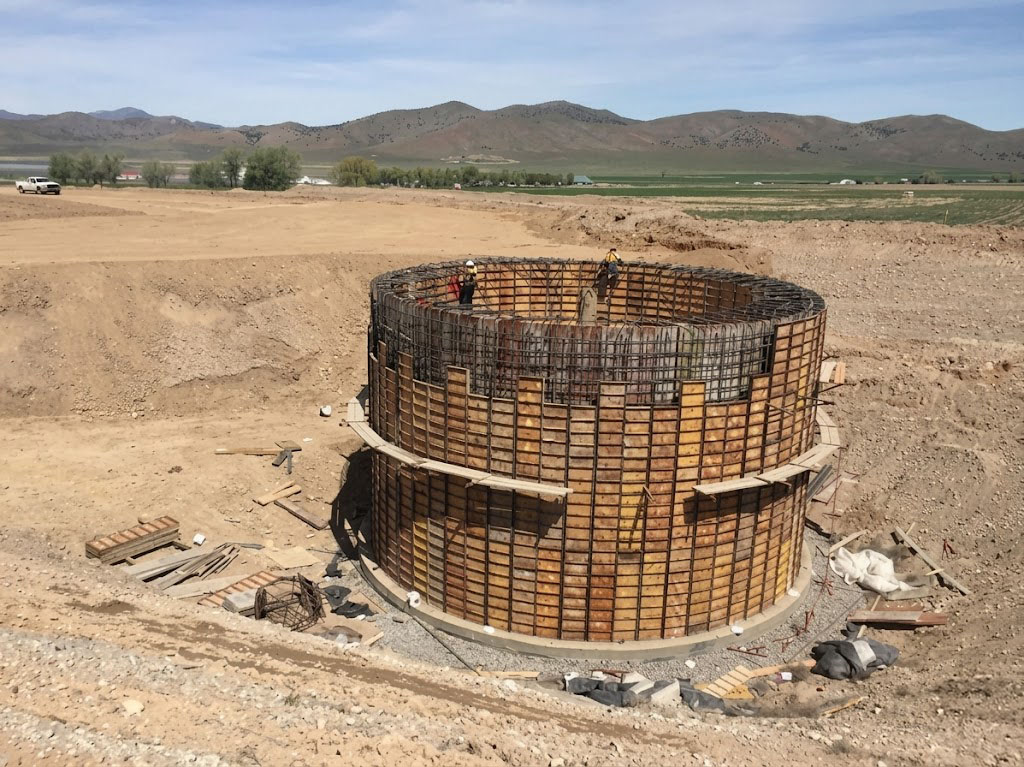

VanCon built a 250,000 gallon concrete water storage tank with XYPEX coating and HDPE and PVC transmission and distribution pipelines. The water system included the installation of a chemical chlorine injection feed system as well as a 500 GPM well and the construction of a pump station building atop a valve vault. The pipeline to valve vault distance was 1,000 feet. Power was installed with new electrical lines to the location. VanCon bored under the highway to install 100 linear feet of 24-inch steel casing.
Project Highlights
- 250,000 gallon concrete water storage tank with XYPEX coating
- HDPE and PVC transmission and distribution pipelines
- Chemical chlorine injection feed system
- 500 GPM well installation
- Pump station building atop valve vault
- 1,000 feet of pipeline to valve vault
- New electrical lines to location
- 100 feet of bore under highway for 24-inch steel casing
