Park City Deer Crest Pump Station & Transmission Line

Project Overview

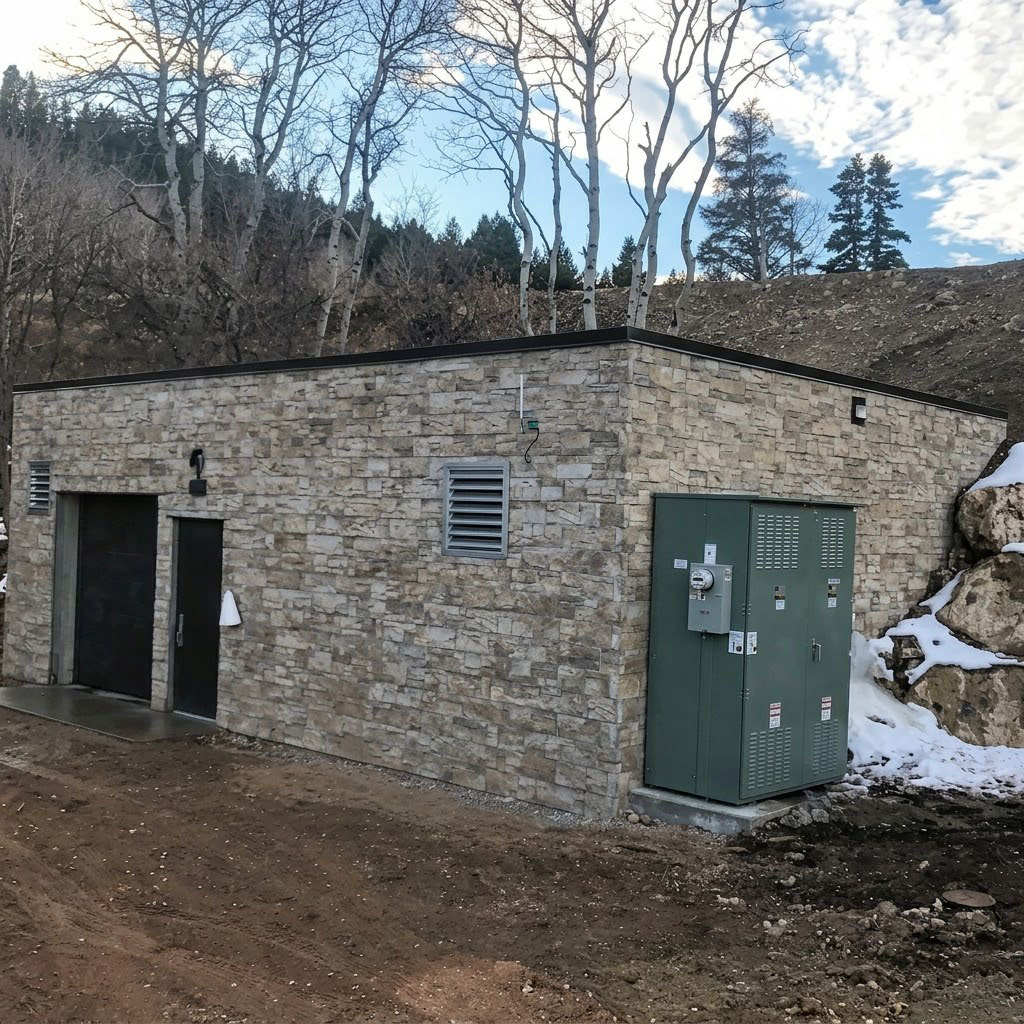

VanCon built a 25x34-foot drinking water pump station building on a concrete pad with exterior concrete aprons, a dry stack stone veneer, and a roof access hatch. The station was connected to an existing waterline with a 12-inch ductile iron suction waterline and another existing waterline with 765 linear feet of 16-inch HDPE pipe. A water meter was installed with controlling valves. VanCon installed an air/vac station with a doghouse manhole and controlling valves. The station included a 125 HP vertical turbine pump, drain piping and a surge tank. Site electrical work was installed which included pull boxes, conduits, and pull wires. The outside landscaping included a concrete headwall and rip rap at a daylighted drain line and erosion control through revegetation.

Project Highlights

• 25x34-foot drinking water pump station building
• Dry stack stone veneer exterior finish
• 12-inch ductile iron suction waterline connection
• 765 feet of 16-inch HDPE pipe
• 125 HP vertical turbine pump
• Air/vac station with doghouse manhole
• Water meter and controlling valves
• Surge tank installation
• Full site electrical — pull boxes, conduits, pull wires
• Concrete headwall, rip rap, and revegetation
